Product Introduction

Model:

GPI-DD25T4/2

Product Introduction:

Product Description : 1、GPS Internal Antenna,dimension:25mm25mm7mm/25mm25mm5mm; 2、Low voltage ,low power consumption, high sensitivity, fast positioning supported; 3、Mounting Method:Adhesive; 4、Wireless center frequenc

SLU0226DS
SLU0226DS
Product description
Product Description

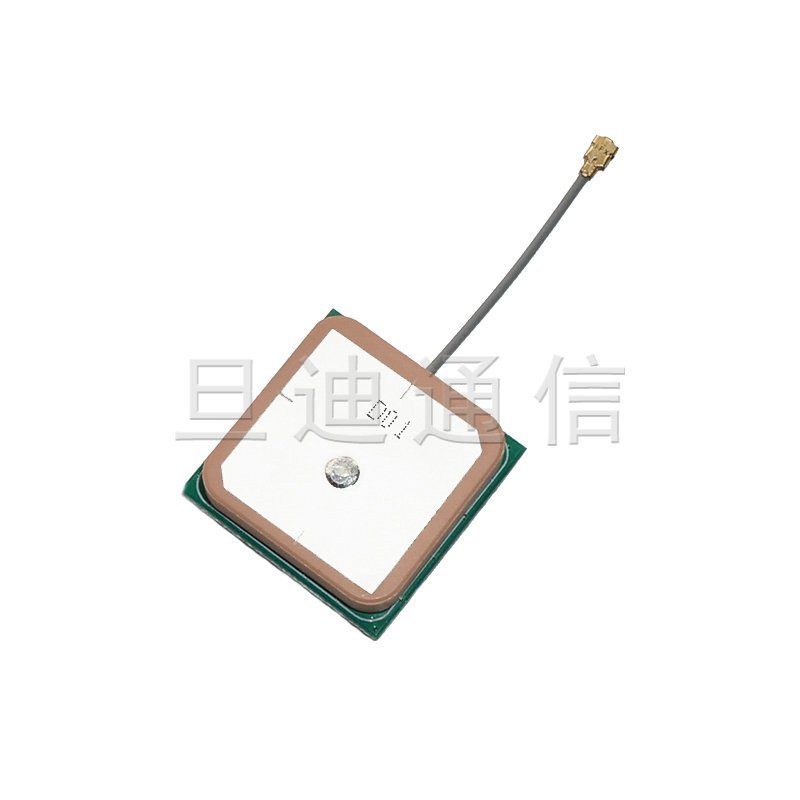

1、GPS Internal Antenna,dimension:25mm×25mm×7mm/25mm×25mm×5mm;
2、Low voltage ,low power consumption, high sensitivity, fast positioning supported;
3、Mounting Method:Adhesive;
4、Wireless center frequency, cable length can be customized;
5、The utility model can be widely used in portable handhold navigation and positioning equipment, industry navigation positioning equipment;

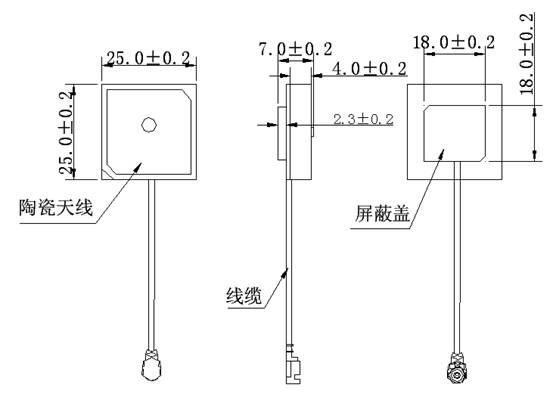

Product Dimension

Product Introduction

Antenna
Center Frequency
1575.42±1.023MHz
Bandwidth
10MHz min
Dimension
25X25X4 25X25X2
Peak Gain
4dBi 3.5dBi
Axial Ratio 3.0dB max
V.S.W.R 1.5dB max
Impedance 50Ω
Polarization RHCP
LNA
Center Frequency
1575.42±1.023MHz
Gain
30±2dB
Noise Figure
1.5dB max
Ex-band Attenuation 40dB@CF+60MHz/40dB@CF-60MHz
Voltage DC 3.0~5.0V
Current 10±2 mA
V.S.W.R 2.0dB max
Mechanical Cable RF1.13/RF0.81
Connector IPX1/2/3/4 or others
Radome Material ceramics
Mounting Method Adhesive
Environmental Operating Temperature -40℃ to +85℃
Relative Humidity Up to 95℃
Environmentally Friendly ROHS Compliant
