Product Introduction

Model：

DD3216F2400M

Product Introduction：

Product Description ： 1、High performance, high sensitivity, support 2.4G ~ 2.5G band； 2、Ultra small size，dimension：3.20mmX1.60mmX1.20mm； 3、The utility model can be widely used in WiFi, Bluetooth device terminal； Product Di

SLU0226DS
SLU0226DS
Product description
Product Description：
1、High performance, high sensitivity, support 2.4G ~ 2.5G band；
2、Ultra small size，dimension：3.20mmX1.60mmX1.20mm；
3、The utility model can be widely used in WiFi, Bluetooth device terminal；

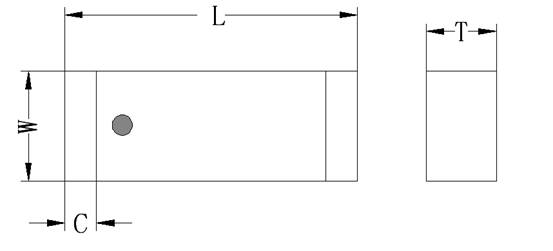

Product Dimension：

L(mm) 3.20±0.20
W(mm) 1.60±0.20
T(mm) 1.20±0.20


Product Introduction：
Antenna
Center Frequency
 2.4-2.5GHz
Bandwidth
 160MHz typ
Peak Gain
 5.05dBic typ
V.S.W.R 1.5dB max
Impedance 50Ω
Azimuth Beamwidth Omni-directional
Mechanical Radome Material ceramics
Environmental Operating Temperature -40℃ to +105℃
Relative Humidity -40℃ to +105℃
Environmentally Friendly ROHS Compliant
