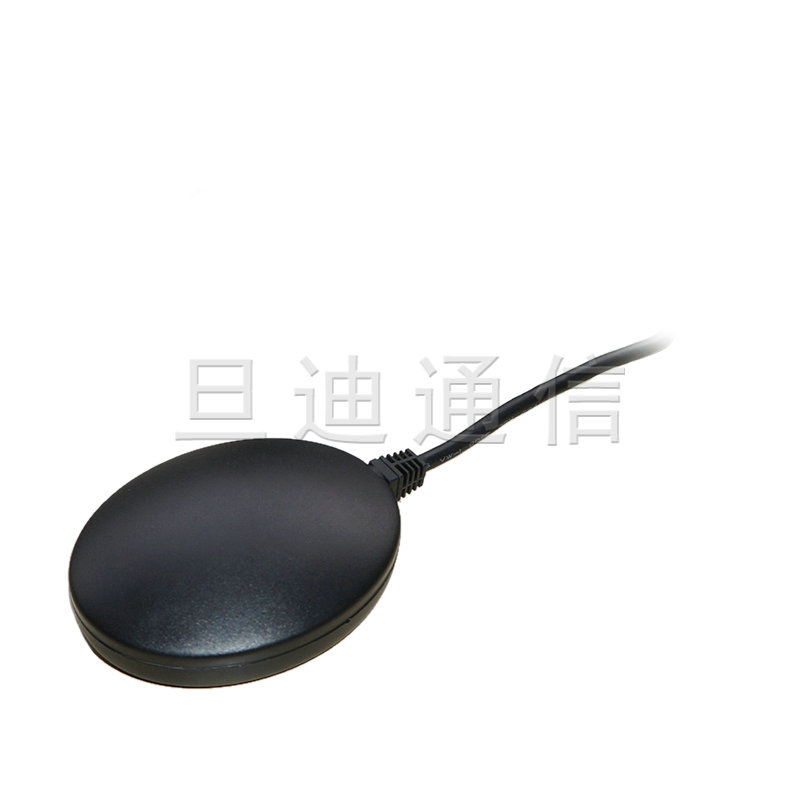

Product Description ： 1、Integrated GPS module and GPS antenna integrated equipment； 2、High performance, low power consumption, fast positioning, dimension：68.0mmX54.0mm X 20.0mm； 3、Mounting Method：USB/RS232/UART or others；
| Chip | SiRFstarIV GSD4e_9333_TR | |
| Frequency | GPS: L1 1575.42MHz | |
| Channels | Support 48 channels | |
| Update rate | 1Hz default | |
| Sensitivity | Tracking | -163dBm (with external LNA) |
| Acquisition |
Hot start (Open Sky) |
1s (typical) |
|
Cold Start (Open Sky) |
33s (typical) | |
| Position Accuracy | Autonomous | ＜2.5m（50% 24h static, -130dBm） |
| Limit value | Max. Altitude | < 18,000 m （Max） |
| Max. Velocity | < 515 m/s （Max） | |
| Protocol Support | NMEA 0183 ver 3.0 |
9600 bps, 8 data bits, no parity, 1 stop bits (default) 1Hz: GGA, GLL, GSA, RMC, VTG |
| Input Voltage | VCC | 3.3±0.3V |
| V_BCKP | 2.0V~ 4.3V | |
| Supply Current | Acquisition | 40mA @3.3V (typical) |
| Battery Current | VCC=0V | 15uA @(typical) |
| Temperature | Operating Temperature | -40 ~ +85℃ |
| Storage Temperature | -40 ~ +85℃ | |
| Weight | ＜3g | |
