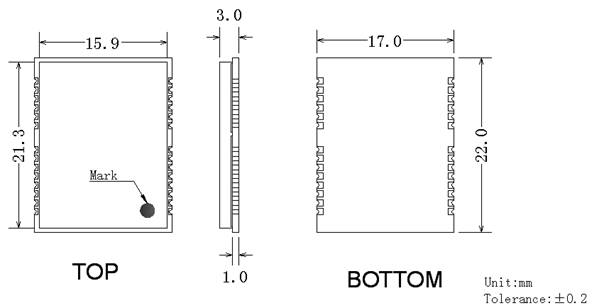

Product Description ： 1、MediaTek MT3333； 2、High performance, low power consumption, small size, dimension：17.0mmX22.0mm X 3.0mm； 3、The utility model can be widely used in GLONASS Positioning Equipment； Product Dimension ：
| Chip | MediaTek MT3333 | |
| Frequency | GPS: L1 1575.42MHz,GLONASS: L1 1598.0625MHz ~ 1605.375MHz | |
| Channels | Support 99 channels (33 Tracking, 99 Acquisition) | |
| Update rate | 1Hz default | |
| Sensitivity | Tracking | -162dBm, up to -165dBm (with external LNA) |
| Cold start | -143.5dBm, up to -148dBm (with external LNA) | |
| Acquisition |
Hot start (Open Sky) |
1s (typical) |
|
Cold Start (Open Sky) |
33s (typical) | |
| Position Accuracy | Autonomous | 3m CEP(50%) |
| Limit value | Max. Altitude | < 18,000 m （Max） |
| Max. Velocity | < 515 m/s （Max） | |
| Protocol Support | NMEA 0183 V4.10 |
9600 bps, 8 data bits, no parity, 1 stop bits (default) 1Hz: GGA, GLL, GSA, RMC, VTG |
| Input Voltage | VCC | 3.3±0.3V |
| V_BCKP | 2.0V~ 4.3V | |
| Supply Current | Acquisition | 40mA @3.3V (typical) |
| Battery Current | VCC=0V | 15uA @(typical) |
| Temperature | Operating Temperature | -40 ~ +85℃ |
| Storage Temperature | -40 ~ +85℃ | |
| Weight | ＜2g | |
