Product Introduction

Model:

GSM-DD106

Product Introduction:

Product Description : 1、Support GSM/GPRS/3G band; 2、Claw spring antenna,Adhesive; 3、Cable length:RG174(1-5m) 4、The utility model can be widely used in GSM/GPRS/3G remote terminal; Product Dimension : Product Introducti

SLU0226DS
SLU0226DS
Product description
Product Description
1、Support GSM/GPRS/3G band;
2、Claw spring antenna,Adhesive;
3、Cable length:RG174(1-5m)
4、The utility model can be widely used in GSM/GPRS/3G remote terminal;

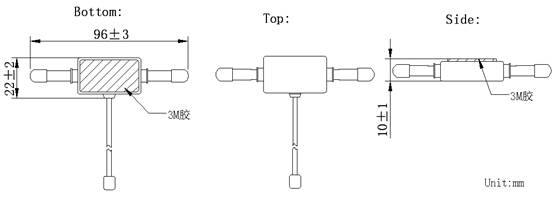

Product Dimension



Product Introduction

Antenna
Frequency Range
824-894/1710-1990MZ
880-960/1710-1990MHz
Peak Gain
2dBi typ
V.S.W.R 2.0dB max
Impedance 50Ω
Polarization Linear
Mechanical Cable RG174
Connector SMA/FAKRA or others
Radome Material ABS
Mounting Method Adhesive
Environmental Operating Temperature -40℃ to +85℃
Relative Humidity Up to 95℃
Vibration 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly ROHS Compliant
