Product Introduction

Model：

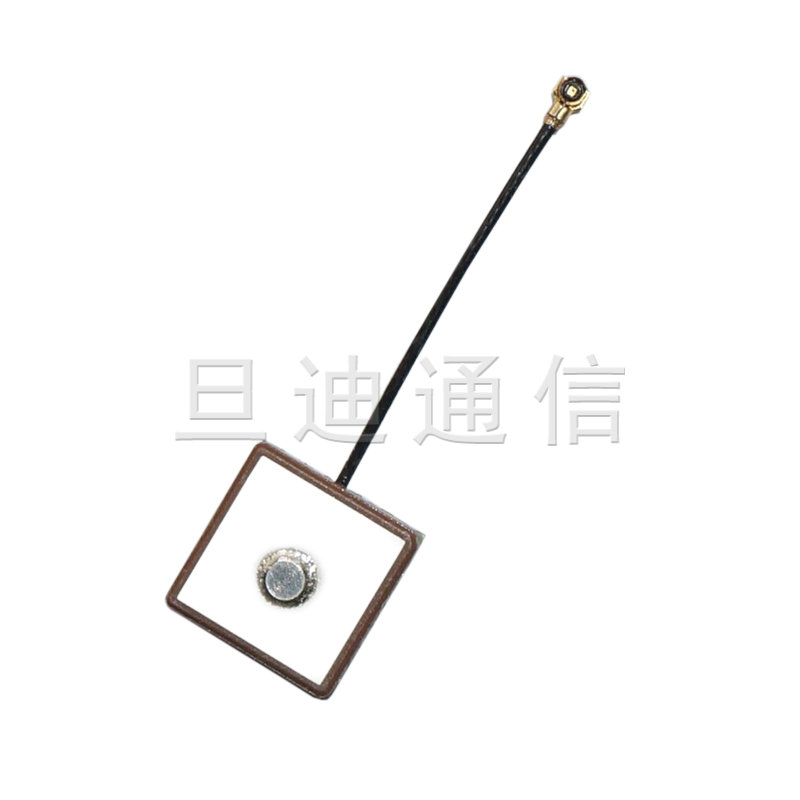

GBA-I12T4/2

Product Introduction：

Product Description ： 1、BeiDou Internal Antenna，dimension：12mm12mm6.2mm/12mm12mm4.2mm； 2、Low voltage ,low power consumption, high sensitivity, support navigation equipment fast positioning； 3、Mounting Method：Adhesive； 4、

SLU0226DS
SLU0226DS
Product description
Product Description：
1、BeiDou Internal Antenna，dimension：12mm×12mm×6.2mm/12mm×12mm×4.2mm；
2、Low voltage ,low power consumption, high sensitivity, support navigation
equipment fast positioning；
3、Mounting Method：Adhesive；
4、Wireless center frequency, cable length can be customized design；
5、The utility model can be widely used in portable handhold navigation and positioning equipment, industry navigation positioning equipment；

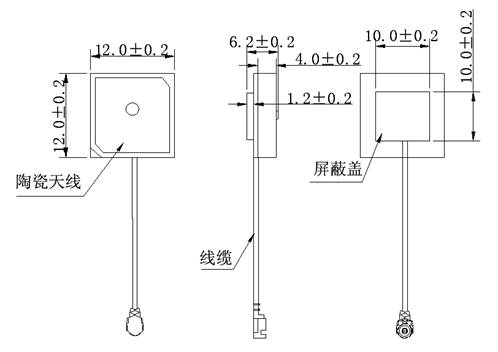

Product Dimension：


Product Introduction：
Antenna
Center Frequency
 L1:1575.42±1.023 MHz
B1:1561.098±2 MHz
Bandwidth
 10MHz min
Dimension
 12X12X4 12X12X2
Peak Gain
 -1.5dBi -2.0dBi
Axial Ratio 3.0dB max
V.S.W.R 1.5dB max
Impedance 50Ω
Polarization RHCP
LNA
Center Frequency
 1568±1.023MHz
Gain
 L1:17±2 dB
B1:17±2 dB
Noise Figure
 1.5dB max
Ex-band Attenuation 40dB@CF+60MHz/40dB@CF-60MHz
Voltage DC 3.0±0.3V
Current 10±2 mA
V.S.W.R 2.0dB max
Mechanical Cable RF1.13/RF0.81
Connector IPX1/2/3/4 or others
Radome Material ceramics
Mounting Method Adhesive
Environmental Operating Temperature -40℃ to +85℃
Relative Humidity Up to 95℃
Environmentally Friendly ROHS Compliant
